Product Details
Place of Origin: Jiangsu, China
Brand Name: Haoen
Certification: Rohs, ISO9001, BSCI
Model Number: AP--164
Payment & Shipping Terms
Minimum Order Quantity: 10000 square meters
Price: USD 0.1-0.3/ square meter
Packaging Details: Pallets and cartons
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T
Supply Ability: 20000 square meters/ day
Color: |
Can Be Customized |
Base Material: |
Polyethylene |
Thickness(mm): |
0.02-0.15 |
Tensile Strength((%): |
80-150 |
Width(mm): |
20-1700 |
Length(m): |
100-1500 |
Elongation At Break(%): |
150-220 |
Heat Resistance: |
≤65℃ |
Color: |
Can Be Customized |
Base Material: |
Polyethylene |
Thickness(mm): |
0.02-0.15 |
Tensile Strength((%): |
80-150 |
Width(mm): |
20-1700 |
Length(m): |
100-1500 |
Elongation At Break(%): |
150-220 |
Heat Resistance: |
≤65℃ |

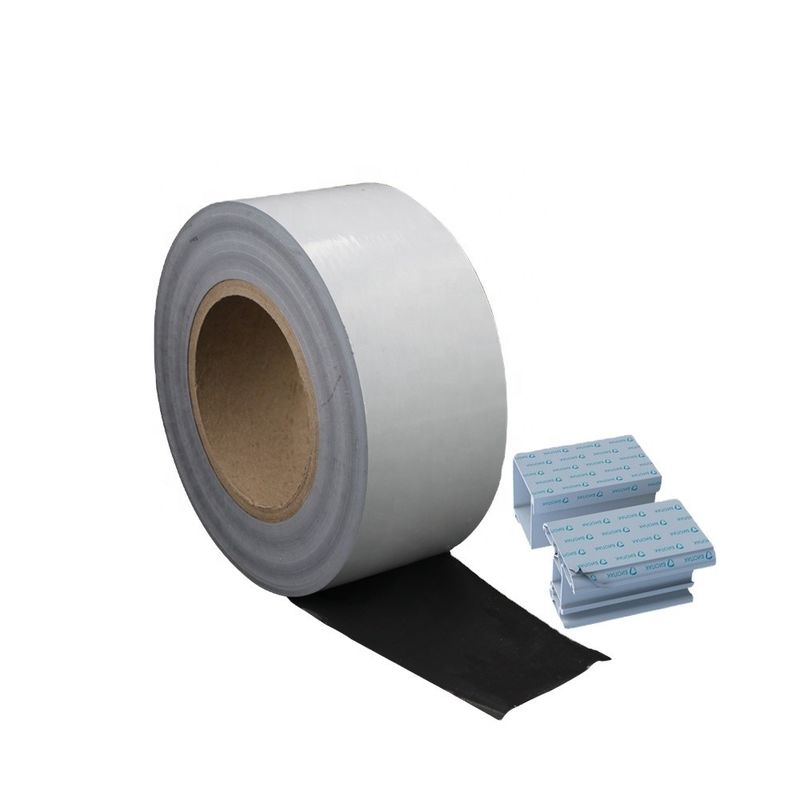

High Adhesive Aluminium Profile Surface Construction Window PE Protective Film
Haoen's alumimum profile protective film supplys temporary protection solutions for your profile surfaces during profile extrusion, window construction or assembly.
The high gloss polyethylene is used as the base material, attached with environment-friendly glue. It does not move glue, not transformed and not fall off at a high temperature of 65℃.
Size information
|
Usage
|
Provide a protective barrier to scratch, mark, damage and dirt at the process of cutting, drilling, milling, transportation and installation.
|
||
|
Base Material
|
Polyethylene (PE)
|
||
|
Glue
|
Water-based acrylic glue
|
||
|
Color
|
Transparent, blue, milky white, black and white, green and so on.
|
||
|
Thickness
|
30-150 microns
|
Recommend Thickness
|
60/70/80/110 microns
|
|
Width
|
50-2000 mm
|
Recommend Width
|
1280mm
|
|
Length
|
50-500 m
|
Recommend Length
|
300m, 450m, 500m
|
|
180 Peel Strength
|
80-500 g/25mm
|
Widely used
|
145g/25mm, 175g/25mm,220g/25mm
|
|
Tensile Strength
|
Trasv> 8N/25mm
Longi> 15N/25mm
|
||
|
Elongation
|
Trasv> 300%
Longi> 180%
|
||
|
Print
|
Up to 3 colors
|
||
Note:
1,The color can be customized according to your requirements.
2,logo can be printed on the film, the printing color is at most 3 colors.
3,The maximum width of 0.15mm thick film is 1250mm.
4,Our company can improve the aging resistance degree of the original film according to the customer's requirement.
| Our company is located in Wuxi, only 40 minutes to Shanghai by train. The convenient traffic condition enables us to provide our protective film at a competitive price. |
Roll is packed with air bubble film,one roll in one carton,then on pallet.
>
FAQ
(1),Q:are you a trading company or manufacturer?
A:We are a factory. Our factory is located in Wuxi, Jiangsu province.
(2),Q: What are your main products?
A:Our main products are transparent film,white film ,blue film and black&white film.It can protect numerous products to avoid scratch, mark, damage and dirt at the process of bending, pressing, roll forming, transportation and installation etc.
(3),Q:do you have a whole production line for protective film?
A:Yes,we have,such as :blowing mold,coating ,laminating,printing,slitting,etc.
(4),Q:how can I know your product is good enough to meet our requirements.
A:(a)Our company has been manufacturing protective films for more than 8 years.
(b)We supply PE protective film for some top 10 aluminum or stainless steel maker in china.
(c)Free sample for testing.
(d)trained and professional technician team there ,after sales service is offered.
(5)Q:do you accept OEM?
A:Yes,we do.We supply OEM service.
