Product Details
Place of Origin: Jiangsu, China
Brand Name: Haoen
Certification: Rohs, ISO9001, BSCI
Model Number: glass--024
Payment & Shipping Terms
Minimum Order Quantity: 10000 square meters
Price: $0.02 - $0.50/square meter
Packaging Details: Pallets and cartons
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 100000 Square Meters per Day
Usage: |
Protective Film |
Color: |
Can Be Customized |
Base Material: |
Polyethylene |
Thickness(mm): |
0.02-0.15 |
Tensile Strength((%): |
80-150 |
Width(mm): |
20-1700 |
Length(m): |
100-1500 |
Elongation At Break(%): |
150-220 |
Heat Resistance: |
≤65℃ |
Usage: |
Protective Film |
Color: |
Can Be Customized |
Base Material: |
Polyethylene |
Thickness(mm): |
0.02-0.15 |
Tensile Strength((%): |
80-150 |
Width(mm): |
20-1700 |
Length(m): |
100-1500 |
Elongation At Break(%): |
150-220 |
Heat Resistance: |
≤65℃ |

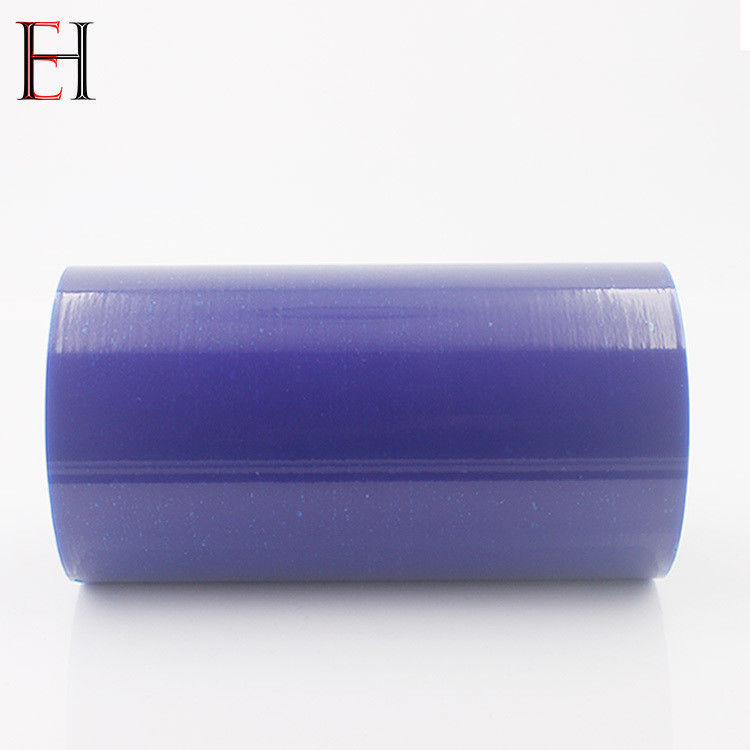

Blue Film Self Adhesion Fiberglass Reinforced Plastic Protective Film Low Peel Strength
The high gloss polyethylene is used as the base material, attached with environment-friendly glue. It does not move glue, not transformed and not fall off at a high temperature of 65℃.
|
Model |
Base material |
Thickness(um) |
Color |
Peel strength (g/cm2) |
Tensile strength((%) |
Elongation at break(%) |
Heat resistance |
|
Microviscosity |
polyethylene |
45-100 |
Transparent,Blue,Black&white |
20 |
80-150 |
150-220 |
≤65℃ |
|
Low viscosity |
polyethylene |
45-100 |
Transparent,Blue,Black&white |
40 |
80-150 |
150-220 |
≤65℃ |
|
Medium high viscosity |
polyethylene |
45-100 |
Transparent,Blue,Black&white |
60-100 |
80-150 |
150-220 |
≤65℃ |
Size information
|
Specification |
Thickness(mm) |
Width(mm) |
Length(m) |
Tube core inside diameter(mm) |
|
0.02-0.15 |
20-1700 |
100-1500 |
76 |
Note:
1,The color can be customized according to your requirements.
2,logo can be printed on the film, the printing color is at most 3 colors.
3,The maximum width of 0.15mm thick film is 1250mm.
4,Our company can improve the aging resistance degree of the original film according to the customer's requirement.
Peeling force test : take a 180 degree peeling force test on the tension test machine, measure three to five times, and take the average number as a reference.
Stickability performance test: easy to paste on the surface of the object, leave no residual glue after peeling off.
A. Bend 45 degrees, do not break, do not fall off.
B. Peel off the film after Pittsburgh film test , there is no residue glue left, no damage to the film .
UV-resistant degradation test: after 60 hours of 300 Watt UV-lamp irradiation at the temperature of 50℃, it doesn't crack or deform. And there is no residue glue left when peeling off .
Heat-resistant degradation test: At the temperature of 200℃ , it do not fall off within 3 minutes. There is no residue glue after peeling down. The surface will not be corroded .
| Our company is located in Wuxi, only 40 minutes to Shanghai by train. The convenient traffic condition enables us to provide our protective film at a competitive price. |
Roll is packed with air bubble film,one roll in one carton,then on pallet.
FAQ
(1),Q:are you a trading company or manufacturer?
A:We are a factory. Our factory is located in Wuxi, Jiangsu province.
(2),Q: What are your main products?
A:Our main products are transparent film,white film ,blue film and black&white film.It can protect numerous products to avoid scratch, mark, damage and dirt at the process of bending, pressing, roll forming, transportation and installation etc.
(3),Q:do you have a whole production line for protective film?
A:Yes,we have,such as :blowing mold,coating ,laminating,printing,slitting,etc.
(4),Q:how can I know your product is good enough to meet our requirements.
A:(a)Our company has been manufacturing protective films for more than 8 years.
(b)We supply PE protective film for some top 10 aluminum or stainless steel maker in china.
(c)Free sample for testing.
(d)trained and professional technician team there ,after sales service is offered.
(5)Q:do you accept OEM?
A:Yes,we do.We supply OEM service.
Contact us for more information and free samples!
